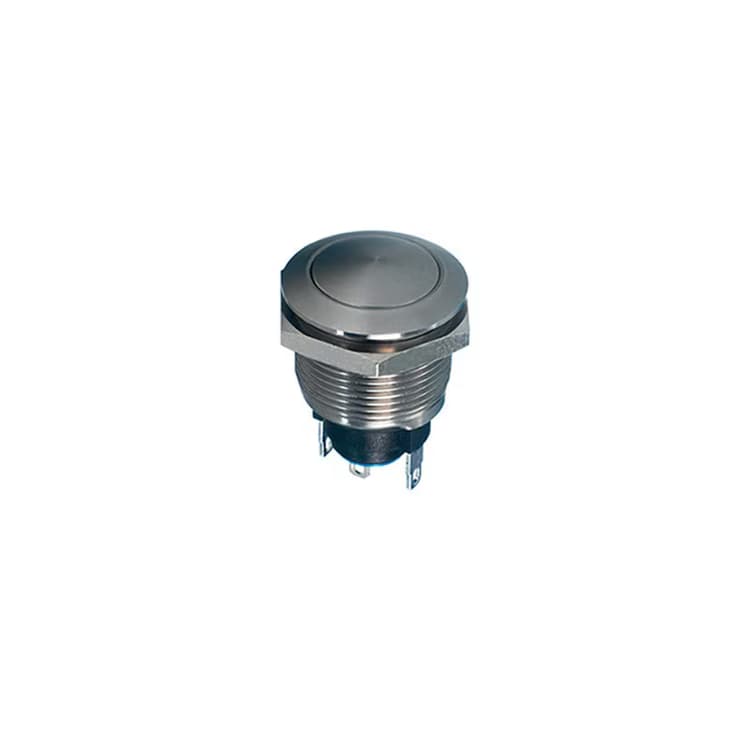

AV - 19-22 - latching

The AV Series pushbuttons offer attractive, robust and durable switches, available with different bushing diameters, actuator shapes, bushing and actuator materials.


Main features

  • Security pushbutton switches
  • Latching
  • Actuator and bushing : nickel plated, chrome plated, varnished polishedor stainless steel
  • Flat or curved actuator available
  • Illuminated or non-illuminated
  • Front panel sealing IP65 in option
Product detail
Product detail

Key Features

• Torque : 1.5 Nm min.- 4 Nm max. applied to nut • Panel thickness : 1 (.039) to 9 mm (.354) max. • Low level or mechanical life : 1,000,000 cycle • Hand soldering : 300 °C, 4 seconds max. • Panel cut-out : Ø 19,2 mm (.755) or Ø 22,2 mm (.874) • Min. pitch for matrix mounting : 30 mm x 30 mm (1.181 x 1.181)
241 Products
Filters
  1. image placeholder
    AV - 19-22 - latching
    AV031L6EA200K
    • Sealing: IP65
    • Terminals: Solder Lug
    • LED Color : Red
  2. image placeholder
    AV - 19-22 - latching
    AV031L3EA240K
    • Sealing: IP65
    • Terminals: Solder Lug
    • LED Color : Green
  3. image placeholder
    AV - 19-22 - latching
    AV031L3EA200K
    • Sealing: IP65
    • Terminals: Solder Lug
    • Illumination: Illuminated
  4. image placeholder
    AV - 19-22 - latching
    AV031L1EA240K
    • Sealing: IP65
    • Terminals: Solder Lug
    • Illumination: Illuminated
  5. image placeholder
    AV - 19-22 - latching
    AV191L6EA850K
    • Sealing: IP65
    • Terminals: Quick Connect
    • Illumination: Illuminated
  6. image placeholder
    AV - 19-22 - latching
    AV191L6EA840
    • Sealing: Unsealed
    • Terminals: Quick Connect
    • Illumination: Illuminated
  7. image placeholder
    AV - 19-22 - latching
    AV191L6EA800
    • Sealing: Unsealed
    • Terminals: Quick Connect
    • Illumination: Illuminated
  8. image placeholder
    AV - 19-22 - latching
    AV191L6EA400K
    • Sealing: IP65
    • Terminals: PC
    • Illumination: Illuminated
  9. image placeholder
    AV - 19-22 - latching
    AV191L6EA210
    • Sealing: Unsealed
    • Terminals: Solder Lug
    • Illumination: Illuminated
  10. image placeholder
    AV - 19-22 - latching
    AV191L5EA8K
    • Sealing: IP65
    • Terminals: Quick Connect
    • Illumination: Illuminated
  11. image placeholder
    AV - 19-22 - latching
    AV191L5EA840K
    • Sealing: IP65
    • Terminals: Quick Connect
    • Illumination: Illuminated
  12. image placeholder
    AV - 19-22 - latching
    AV191L5EA450
    • Sealing: Unsealed
    • Terminals: PC
    • Illumination: Illuminated

Showing 1~ 12 of 241 Products

...
