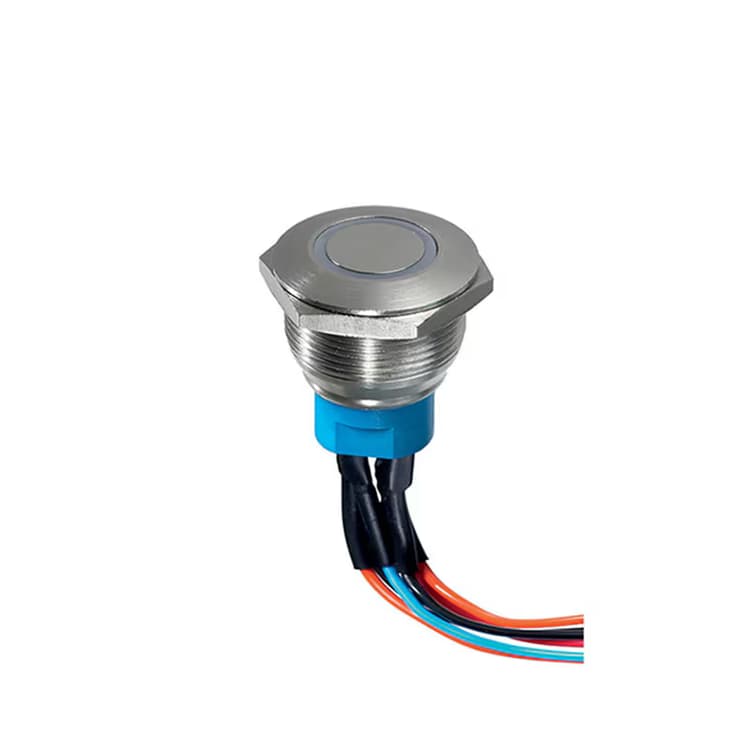

AV - 19-22 - NC/NO - illuminated

The AV Series pushbuttons offer attractive, robust and durable switches, available with different bushing diameters, actuator shapes, bushing and actuator materials.


Main features

  • Security pushbutton switches
  • Bushing diameters 19 mm and 22 mm available
  • Momentary (NC/NO)
  • Actuator and bushing : nickel plated, chrome plated, or stainless steel
  • With illuminated ring
  • Front panel sealing IP67 in option
  • Optional connector
Product detail
Product detail

Key Features

• Travel : 2 mm ± 0,3 mm (.003) • Operating force : 5 N ± 2 N • Torque : 1.5 Nm min.- 4 Nm max. applied to nut • Panel thickness : 1 (.039) to 6 mm (.236) max. • Low level or mechanical life : 1,000,000 cycles • Hand soldering : 350 °C, 5 seconds max. • Panel cut-out : Ø 19,2 mm (.755) or Ø 22,2 mm (.874) • Min. pitch for matrix mounting : 30 mm x 30 mm (1.181x1.181)
367 Products
Filters
  1. image placeholder
    AV - 19-22 - NC/NO - illuminated
    AV3622F1020700K
    • Sealing: Sealed to IP67
    • Terminals: Flying Leads
    • LED Color : Red
  2. image placeholder
    AV - 19-22 - NC/NO - illuminated
    AV9V42C1670
    • Sealing: Unsealed
    • Terminals: Cable
    • Ring Colors: Red
  3. image placeholder
    AV - 19-22 - NC/NO - illuminated
    AV9V42C102084B
    • Sealing: Unsealed
    • Terminals: Cable
    • Ring Colors: Translucent
  4. image placeholder
    AV - 19-22 - NC/NO - illuminated
    AV9V42C07
    • Sealing: Unsealed
    • Terminals: Cable
    • Ring Colors: Opal White
  5. image placeholder
    AV - 19-22 - NC/NO - illuminated
    AV9V42C0000340
    • Sealing: Unsealed
    • Terminals: Cable
    • Ring Colors: Green
  6. image placeholder
    AV - 19-22 - NC/NO - illuminated
    AV9V4222500
    • Sealing: Unsealed
    • Terminals: Solder Lug Quick Connect
    • Ring Colors: Yellow
  7. image placeholder
    AV - 19-22 - NC/NO - illuminated
    AV9V422202054BK
    • Sealing: Sealed to IP67
    • Terminals: Solder Lug Quick Connect
    • Ring Colors: Yellow
  8. image placeholder
    AV - 19-22 - NC/NO - illuminated
    AV9V4221XXX8K
    • Sealing: Sealed to IP67
    • Terminals: Solder Lug Quick Connect
    • Ring Colors: Translucent
  9. image placeholder
    AV - 19-22 - NC/NO - illuminated
    AV9V4220020740
    • Sealing: Unsealed
    • Terminals: Solder Lug Quick Connect
    • Ring Colors: Opal White
  10. image placeholder
    AV - 19-22 - NC/NO - illuminated
    AV9V22F200074BK
    • Sealing: Sealed to IP67
    • Terminals: Flying Leads
    • Ring Colors: Opal White
  11. image placeholder
    AV - 19-22 - NC/NO - illuminated
    AV9V22F102084BK
    • Sealing: Sealed to IP67
    • Terminals: Flying Leads
    • LED Color : Green
  12. image placeholder
    AV - 19-22 - NC/NO - illuminated
    AV9V22F1020740K
    • Sealing: Sealed to IP67
    • Terminals: Flying Leads
    • LED Color : Green

Showing 1~ 12 of 367 Products

...
