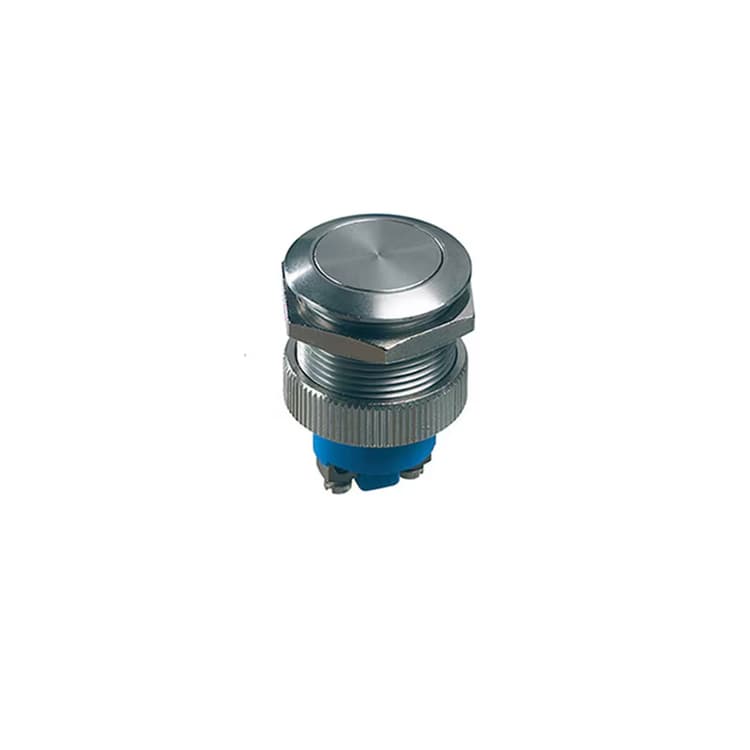

AV - anti-vandal pushbutton switches
The AV Series pushbuttons offer attractive, robust and durable switches, available with different bushing diameters.
Main features
- Great robustness: impact resistance IK08 (dia.19)orIK10 (dia.22)
- Stainless steel actuator and bushing
- Momentary
- UL approval available
Key Features
• Torque : 1.5 Nm min.- 4 Nm max. applied to nut
• Panel thickness : 1 (.039) to 11 mm (.433) max.
• Low level or mechanical life : 1,000,000 cycles
• Hand soldering : 300 °C, 3 sec. max.
• Panel cut-out : Ø 19.2 mm (.755) or Ø 22.2 mm (.874)
• Min. pitch for matrix mounting : 30 mm x 30 mm (1.181x1.181)
408 Products
Filters
408 Products
Sort By
AV - anti-vandal pushbutton switchesAV031003A940T- Case: Short
- Sealing: IP65
- Terminals: Screw
- AV - anti-vandal pushbutton switchesAV031003A240T
- Case: Short
- Sealing: IP65
- Terminals: Solder Lug Quick Connect
- AV - anti-vandal pushbutton switchesAV193A989T
- Sealing: IP65
- Terminals: Screw
- Contact Materials: Silver
- AV - anti-vandal pushbutton switchesAV193A982T
- Sealing: IP65
- Terminals: Screw
- Contact Materials: Silver
- AV - anti-vandal pushbutton switchesAV193A981T
- Sealing: IP65
- Terminals: Screw
- Contact Materials: Silver
- AV - anti-vandal pushbutton switchesAV193A970T
- Sealing: IP65
- Terminals: Screw
- Contact Materials: Silver
- AV - anti-vandal pushbutton switchesAV193A950T
- Sealing: IP65
- Terminals: Screw
- Contact Materials: Silver
- AV - anti-vandal pushbutton switchesAV193A950N
- Sealing: Unsealed
- Terminals: Screw
- Contact Materials: Silver
- AV - anti-vandal pushbutton switchesAV193A940T
- Sealing: IP65
- Terminals: Screw
- Contact Materials: Silver
- AV - anti-vandal pushbutton switchesAV193A930T
- Sealing: IP65
- Terminals: Screw
- Contact Materials: Silver
- AV - anti-vandal pushbutton switchesAV193A930N
- Sealing: Unsealed
- Terminals: Screw
- Contact Materials: Silver
- AV - anti-vandal pushbutton switchesAV193A929N
- Sealing: Unsealed
- Terminals: Screw
- Contact Materials: Silver
Showing 1~ 12 of 408 Products
...
