IB

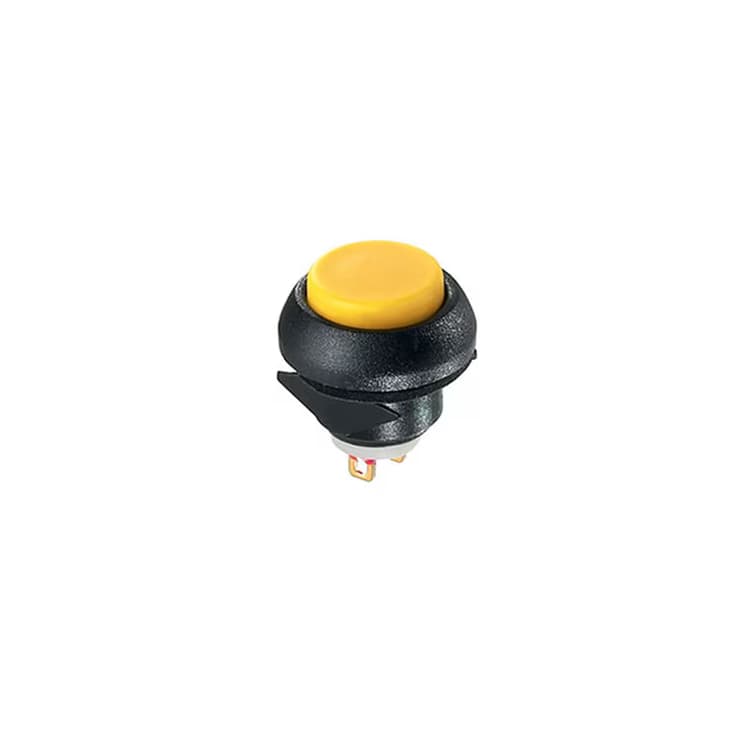

Sealed pushbutton switches with snap-in mount. Compact and light in weight with50% reduction in weight compare to metallic models.

Main features

  • Behind panel depth of 13mm (.512)
  • Tactile feedback
  • Sealed to IP54
  • Illuminated or non-illuminated (for round plunger only)
  • Additional sealing by silicone boot for protection against frost and abrasion by sand.


Product detail
Product detail

Key Features

• Panel thickness: 0.8 mm (.031) min. - 1.8 mm ( .071) max. • Total travel: 1.7 mm (.066) +/- 0.3 mm • Typical operating force: 4 N +/- 3 N • Low level or mechanical life: 1,000,000 cycles • Torque (applied to nut) : 1 Nm max. with metal nut U166 1,5 Nm max. with plastic nut U4248 • Soldering : 300 °C max. for 3 seconds
235 Products
Filters
  1. image placeholder
    IB
    IBR3Z1ADB10234UL
    • Options: Reduced Bezel Standard Mounting (15mm,0.590in)
    • Terminals: Quick Connect
    • Bushing Bezel: White
  2. image placeholder
    IB
    IBR3Z1ADB00UL
    • Terminals: Quick Connect
    • Bushing Bezel: Black
    • Actuator Shape: Round, Curved
  3. image placeholder
    IB
    IBR3Z1ADB00
    • Terminals: Quick Connect
    • Bushing Bezel: Black
    • Actuator Shape: Round, Curved
  4. image placeholder
    IB
    IBR3Z1ADA10UL
    • Terminals: Quick Connect
    • Bushing Bezel: White
    • Actuator Shape: Round, Curved
  5. image placeholder
    IB
    IBR3Z1ADA10234
    • Options: Reduced Bezel Standard Mounting (15mm,0.590in)
    • Terminals: Quick Connect
    • Bushing Bezel: White
  6. image placeholder
    IB
    IBR3Z1ADA00
    • Terminals: Quick Connect
    • Bushing Bezel: Black
    • Actuator Shape: Round, Curved
  7. image placeholder
    IB
    IBR3Z1AD910
    • Terminals: Quick Connect
    • Bushing Bezel: White
    • Actuator Shape: Round, Curved
  8. image placeholder
    IB
    IBR3Z1AD900
    • Terminals: Quick Connect
    • Bushing Bezel: Black
    • Actuator Shape: Round, Curved
  9. image placeholder
    IB
    IBR3Z1AD810UL
    • Terminals: Quick Connect
    • Bushing Bezel: White
    • Actuator Shape: Round, Curved
  10. image placeholder
    IB
    IBR3Z1AD810234
    • Options: Reduced Bezel Standard Mounting (15mm,0.590in)
    • Terminals: Quick Connect
    • Bushing Bezel: White
  11. image placeholder
    IB
    IBR3Z1AD810104
    • Options: High Actuator
    • Terminals: Quick Connect
    • Bushing Bezel: White
  12. image placeholder
    IB
    IBR3Z1AD800UL
    • Terminals: Quick Connect
    • Bushing Bezel: Black
    • Actuator Shape: Round, Curved

Showing 1~ 12 of 235 Products

...
