IC

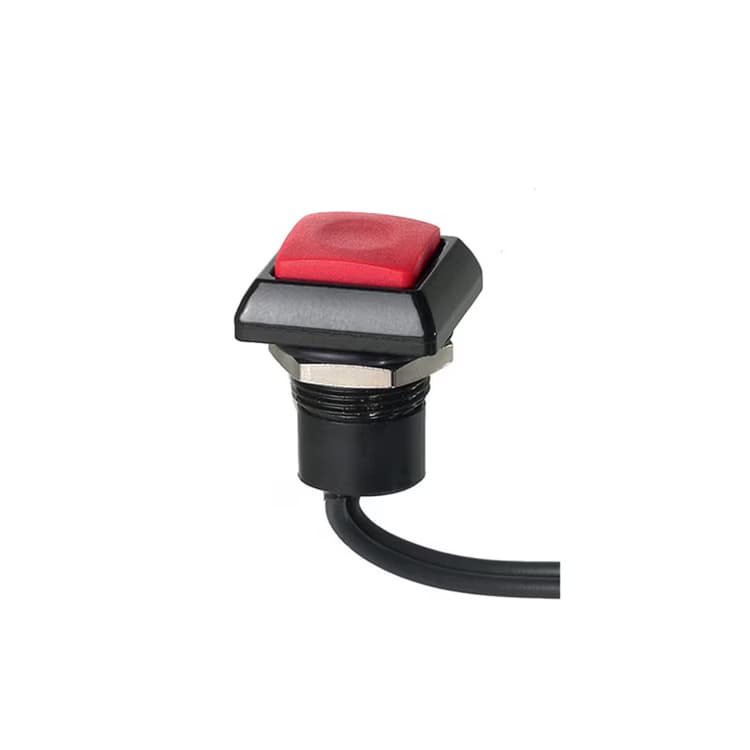

The IC series is a range of momentary pushbutton switches for harsh environments with short case for reduced behind-panel depth.Easier integration even in the tightest spaces.

Main features

  • Short case for tight space requirements
  • Metal bushing dia.12 mm
  • Non-illuminated
  • Tactile feedback
  • Square or round actuator
  • Glossy actuator option (round curved only)
  • Gold plated silver contacts
  • Sealed to IP67
Product detail
Product detail

Key Features

• Panel thickness: 1.5 mm (.059) min. 4 mm (.157 max.) • Total travel: 1.7 mm (.067)+/- 0.3 mm • Typical operating force: 4 N +/- 2 N • Low level or mechanical life: 1,000,000 cycles • Torque: 1,5 Nm max. applied to nut • Soldering: 320 °C max. for 3 sec
196 Products
Filters
  1. image placeholder
    IC
    ICR3Z1AD5100
    • Options: Satin Chrome Bezel
    • Mounting: Quick Connect
    • Actuator Colors: Yellow
  2. image placeholder
    IC
    ICR3Z1AD2
    • Mounting: Quick Connect
    • Actuator Colors: Black
    • Contact Materials: Silver (Gold-Plated)
  3. image placeholder
    IC
    ICR3Z14101
    • Options: Bright Chrome Bezel
    • Mounting: Quick Connect
    • Actuator Colors: Gray
  4. image placeholder
    IC
    ICR3Z12100
    • Options: Satin Chrome Bezel
    • Mounting: Quick Connect
    • Actuator Colors: Black
  5. image placeholder
    IC
    ICR3SADB104
    • Options: High Actuator Round Model Only - Except with Gloss Finish
    • Mounting: Solder Lug
    • Actuator Colors: Dark Blue
  6. image placeholder
    IC
    ICR3SADB101
    • Options: Bright Chrome Bezel
    • Mounting: Solder Lug
    • Terminals: Solder Lug
  7. image placeholder
    IC
    ICR3SADB100
    • Options: Satin Chrome Bezel
    • Terminals: Solder Lug
    • Actuator Shape: Round, Curved
  8. image placeholder
    IC
    ICR3SADA104
    • Options: High Actuator Round Model Only - Except with Gloss Finish
    • Mounting: Solder Lug
    • Actuator Colors: Satin Chrome
  9. image placeholder
    IC
    ICR3SADA100
    • Options: Satin Chrome Bezel
    • Mounting: Solder Lug
    • Terminals: Solder Lug
  10. image placeholder
    IC
    ICR3SADA
    • Terminals: Solder Lug
    • Actuator Shape: Round, Curved
    • Actuator Colors: Satin Chrome
  11. image placeholder
    IC
    ICR3SAD9104
    • Options: High Actuator Round Model Only - Except with Gloss Finish
    • Mounting: Solder Lug
    • Actuator Colors: Orange
  12. image placeholder
    IC
    ICR3SAD9101
    • Options: Bright Chrome Bezel
    • Mounting: Solder Lug
    • Actuator Colors: Orange

Showing 1~ 12 of 196 Products

...
