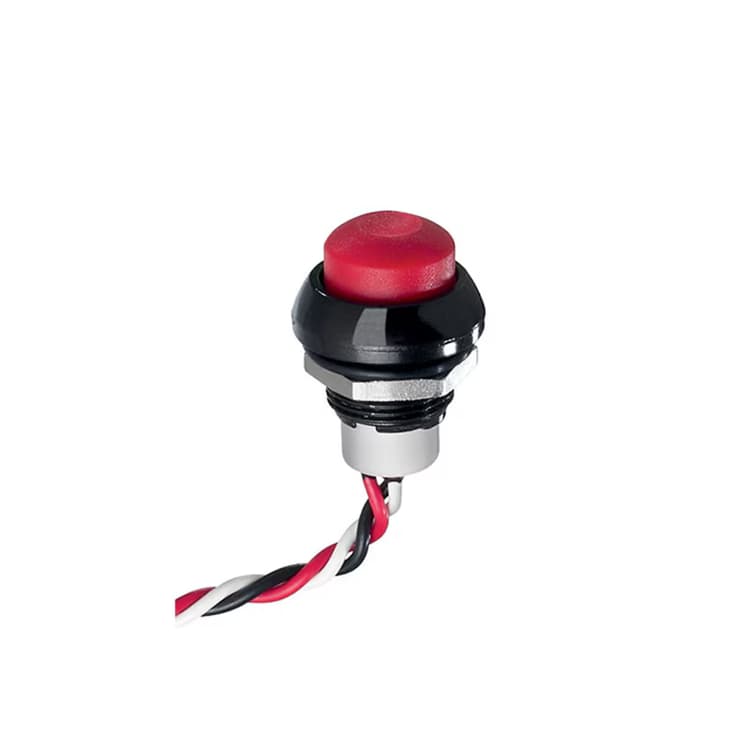

IHS

The IH Switch version (OFF-MOM) is designed to withstand a high number of cycles and repetitive jogging. Ideal in applications where positioning the load is critical, including material handling, loaders, lifts, trucks, buckets and shovels and other applications requiring continuous operations.

Main features

  • Eight actuator colors
  • Operating force: 6 N ± 2N
  • 5 million cycles
  • Hall Effect sensors for long life
  • IP67 sealing
  • Low behind-the-panel depth
Product detail
Product detail

Key Features

• Panel thickness: 1.5 mm (.059) min. - 4 mm (.157) max. • Total travel: 1.80 mm (.070) +/- 0.3 mm • Typical operating force: 6 N +/- 2 N • Mechanical life: 5 million cycles • Torque: 1.5 Nm max. applied to nut
33 Products
Filters
  1. image placeholder
    IHS
    IHSR36FB101
    • Options: Bright Chrome Bezel
    • Terminals: Flying Leads
    • Actuator Shape: Round
  2. image placeholder
    IHS
    IHSR36FB
    • Terminals: Flying Leads
    • Actuator Shape: Round
    • Actuator Colors: Dark Blue
  3. image placeholder
    IHS
    IHSR36F9101
    • Options: Bright Chrome Bezel
    • Terminals: Flying Leads
    • Actuator Shape: Round
  4. image placeholder
    IHS
    IHSR36F9
    • Mounting: Flying Leads
    • Actuator Colors: Orange
    • Operating Force: 6N
  5. image placeholder
    IHS
    IHSR36F7101
    • Options: Bright Chrome Bezel
    • Terminals: Flying Leads
    • Actuator Shape: Round
  6. image placeholder
    IHS
    IHSR36F7100
    • Options: Satin Chrome Bezel
    • Terminals: Flying Leads
    • Actuator Shape: Round
  7. image placeholder
    IHS
    IHSR36F7
    • Terminals: Flying Leads
    • Actuator Shape: Round
    • Actuator Colors: White
  8. image placeholder
    IHS
    IHSR36F6100
    • Options: Satin Chrome Bezel
    • Terminals: Flying Leads
    • Actuator Shape: Round
  9. image placeholder
    IHS
    IHSR36F6
    • Terminals: Flying Leads
    • Actuator Shape: Round
    • Actuator Colors: Red
  10. image placeholder
    IHS
    IHSR36F5101
    • Options: Bright Chrome Bezel
    • Terminals: Flying Leads
    • Actuator Shape: Round
  11. image placeholder
    IHS
    IHSR36F5100
    • Options: Satin Chrome Bezel
    • Terminals: Flying Leads
    • Actuator Shape: Round
  12. image placeholder
    IHS
    IHSR36F5
    • Mounting: Flying Leads
    • Actuator Colors: Yellow
    • Operating Force: 6N

Showing 1~ 12 of 33 Products
