IL

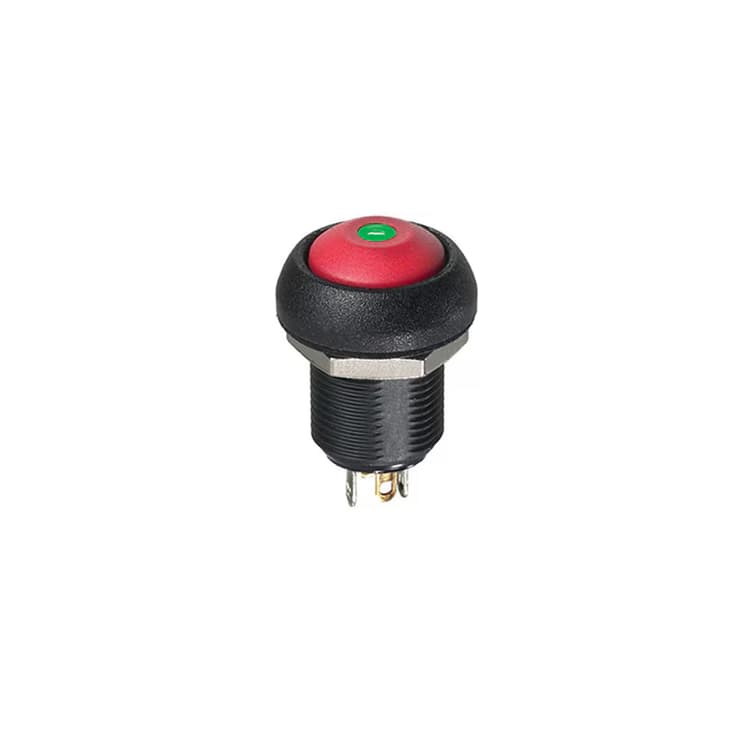

The IL series is a range of momentary sealed pushbutton switches perfect for installation on thick or variable thickness panels.

Main features

  • Dia.12 mm long threaded bushing
  • Illuminated or not
  • For panels up to 10 mm thick
  • Tactile feedback
  • Round actuator
  • Gold plated silver contacts
  • Sealed to IP67 (standard models only)
Product detail
Product detail

Key Features

• Panel thickness: 1.50 mm (.059) min. 10 mm (.393) max. • Total travel: 1.7 mm (.067) +/- 0.3 mm • Typical operating force: 4 N +/- 2 N • Low level or mechanical life: 1,000,000 cycles • Torque (applied to nut): 1 Nm max. with metal nut U166 1.5 Nm max. with plastic nut U4248 • Soldering: 300 °C max. for 3 seconds
321 Products
Filters
  1. image placeholder
    IL
    ILR3SADBLYG
    • Terminals: Solder Lug
    • Actuator Shape: Round, Curved
    • Actuator Colors: Dark Blue
  2. image placeholder
    IL
    ILR3SADBLSGX1242
    • Bezel: Reduced Bezel Front Mounting
    • Terminals: Solder Lug
    • Actuator Shape: Round, Curved
  3. image placeholder
    IL
    ILR3SADBLSG234
    • Bezel: Reduced Bezel Standard Mounting
    • Terminals: Solder Lug
    • Actuator Shape: Round, Curved
  4. image placeholder
    IL
    ILR3SADBL0W
    • Terminals: Solder Lug
    • Actuator Shape: Round, Curved
    • Actuator Colors: Dark Blue
  5. image placeholder
    IL
    ILR3SADBL0GX1242
    • Bezel: Reduced Bezel Front Mounting
    • Terminals: Solder Lug
    • Actuator Shape: Round, Curved
  6. image placeholder
    IL
    ILR3SADBL0G234
    • Bezel: Reduced Bezel Standard Mounting
    • Terminals: Solder Lug
    • Actuator Shape: Round, Curved
  7. image placeholder
    IL
    ILR3SADBL0G
    • Terminals: Solder Lug
    • Actuator Shape: Round, Curved
    • Actuator Colors: Dark Blue
  8. image placeholder
    IL
    ILR3SADBL0B
    • Mounting: Solder Lug
    • LED Color : Blue
    • Actuator Colors: Dark Blue
  9. image placeholder
    IL
    ILR3SADB
    • Mounting: Solder Lug
    • Actuator Colors: Dark Blue
    • Contact Materials: Silver (Gold-Plated)
  10. image placeholder
    IL
    ILR3SADALYG234
    • Bezel: Reduced Bezel Standard Mounting
    • Terminals: Solder Lug
    • Actuator Shape: Round, Curved
  11. image placeholder
    IL
    ILR3SADAL0S234
    • Bezel: Reduced Bezel Standard Mounting
    • Terminals: Solder Lug
    • Actuator Shape: Round, Curved
  12. image placeholder
    IL
    ILR3SAD9LYG
    • Terminals: Solder Lug
    • Actuator Shape: Round, Curved
    • Actuator Colors: Orange

Showing 1~ 12 of 321 Products

...
