IP - latching

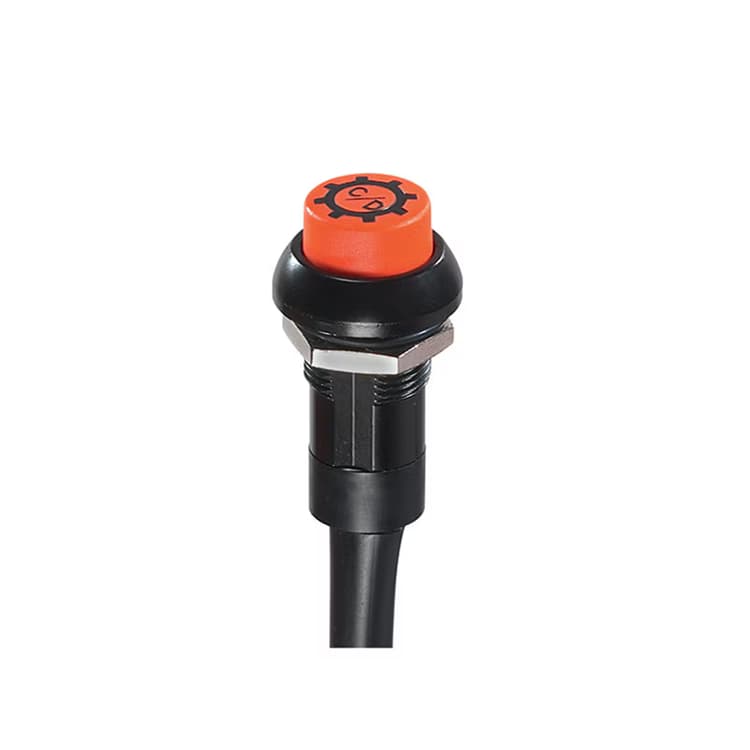

Illuminated or non-illuminated latching action pushbuttons for harsh environments, sealed to IP67. Round or square actuator, available in many different colors. Numerous terminal options, gold plated silver contacts.

Main features

  • Latching action: actuator remains in the low position when ON
  • Illuminated and non-illuminated
  • Flat round actuator for optional marking
  • Compact: behind-panel depth less than 20 mm (.787)
  • High brightness illumination
  • Four LED colors
Product detail
Product detail

Key Features

• Panel thickness: 1.5 mm (.059) min. 5.5 mm (.217) max. • Total travel: 2.5 mm (.098) +/- 0.3 mm • Typical operating force: 10 N • Low level/mechanical life : 200,000 cycles • Torque : 1.5 Nm max. applied to nut • Soldering : 320°C max. for 3 sec.
444 Products
Filters
  1. image placeholder
    IP - latching
    IPR3SAD6L0S
    • Mounting: Solder Lug
    • LED Color : Super Red
    • Actuator Colors: Red
  2. image placeholder
    IP - latching
    IPR3SAD6L0G
    • Mounting: Solder Lug
    • LED Color : Green
    • Actuator Colors: Red
  3. image placeholder
    IP - latching
    IPR3SAD6
    • Mounting: Solder Lug
    • Actuator Colors: Red
    • Contact Materials: Silver (Gold-Plated)
  4. image placeholder
    IP - latching
    IPR3SAD5L0G
    • Mounting: Solder Lug
    • LED Color : Green
    • Actuator Colors: Yellow
  5. image placeholder
    IP - latching
    IPR3SAD5
    • Mounting: Solder Lug
    • Actuator Colors: Yellow
    • Contact Materials: Silver (Gold-Plated)
  6. image placeholder
    IP - latching
    IPR3SAD3L0S
    • Mounting: Solder Lug
    • LED Color : Super Red
    • Actuator Colors: Green
  7. image placeholder
    IP - latching
    IPR3SAD3L0G
    • Mounting: Solder Lug
    • LED Color : Green
    • Actuator Colors: Green
  8. image placeholder
    IP - latching
    IPR3SAD3
    • Mounting: Solder Lug
    • Actuator Colors: Green
    • Contact Materials: Silver (Gold-Plated)
  9. image placeholder
    IP - latching
    IPR3SAD1L0S
    • Mounting: Solder Lug
    • LED Color : Super Red
    • Actuator Colors: Blue
  10. image placeholder
    IP - latching
    IPR3SAD1L0G
    • Mounting: Solder Lug
    • LED Color : Green
    • Actuator Colors: Blue
  11. image placeholder
    IP - latching
    IPR3SAD1
    • Mounting: Solder Lug
    • Actuator Colors: Blue
    • Contact Materials: Silver (Gold-Plated)
  12. image placeholder
    IP - latching
    IPR5SCD6104
    • Options: High Actuator, Non-Illuminated, Round Models Only
    • Mounting: Solder Lug
    • Actuator Colors: Red

Showing 1~ 12 of 444 Products

...
