IP - momentary

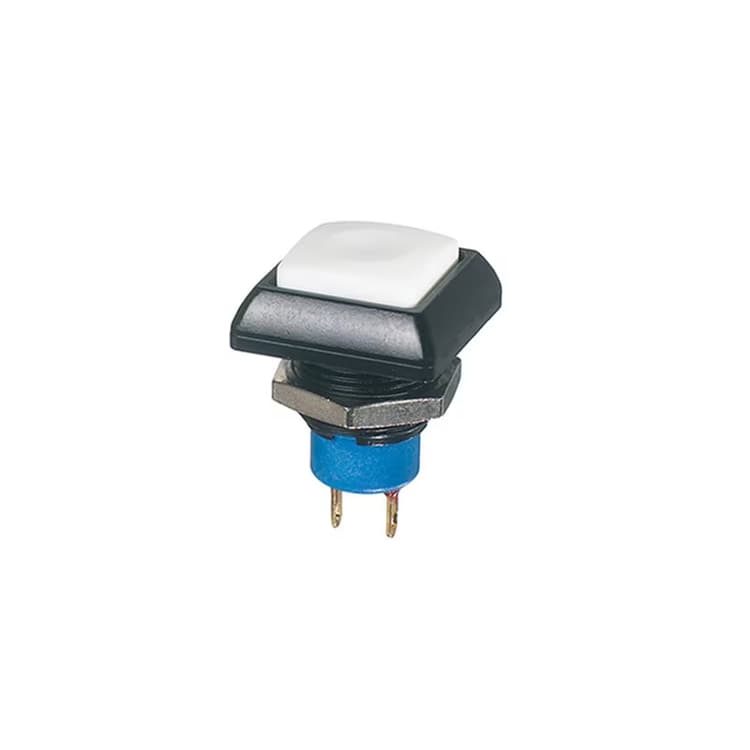

Illuminated or non-illuminated momentary action pushbuttons for harsh environments, sealed to IP67. Round or square actuator, available in many different colors. Numerous terminal options, gold plated silver contacts.

Main features

  • Normally open (NO) or NC/NO combined (non-illuminated only)
  • Variety of terminal options
  • Flat round actuator for optional marking
  • High brightness illumination
  • Tin plated LED terminals
  • Operating temperature: -40 °C to +85 °C (-40 °F to 185 °F)

Additional sealing

  • For ROUND plungers only, illuminated or non-illuminated
  • By silicone boot for protection against frost and abrasion by sand. Order separately.
    • transparent: U5125
    • blue: U5125-1
    • black: U5125-2
    • red: U5125-6
Product detail
Product detail

Key Features

• Panel thickness: 1.5 mm (.059) min. , 4 mm (.157 max.) • Total travel: Function 3: 1.7 mm (.067) +/- 0.3 mm Function 5: 1.3 mm (.051) +/- 0.3 mm • Typical operating force : 6N +/- 2N • Low level/mechanical life: 1,000,000 cycles • Torque: 1.5 Nm max. applied to nut • Soldering: 320°C max. for 3 sec.
314 Products
Filters
  1. image placeholder
    IP - momentary
    IPR1SAD5UL
    • Mounting: Solder Lug
    • Approvals: Consult Factory for Details of Approved Models
    • Actuator Colors: Yellow
  2. image placeholder
    IP - momentary
    IPR1SAD5L0S
    • Mounting: Solder Lug
    • LED Color : Super Red
    • Actuator Colors: Yellow
  3. image placeholder
    IP - momentary
    IPR1SAD5
    • Mounting: Solder Lug
    • Actuator Colors: Yellow
    • Contact Materials: Silver (Gold-Plated)
  4. image placeholder
    IP - momentary
    IPR1SAD4UL
    • Mounting: Solder Lug
    • Approvals: Consult Factory for Details of Approved Models
    • Actuator Colors: Gray
  5. image placeholder
    IP - momentary
    IPR1SAD3UL
    • Mounting: Solder Lug
    • Approvals: Consult Factory for Details of Approved Models
    • Actuator Colors: Green
  6. image placeholder
    IP - momentary
    IPR1SAD3L0S
    • Mounting: Solder Lug
    • LED Color : Super Red
    • Actuator Colors: Green
  7. image placeholder
    IP - momentary
    IPR1SAD3L0GUL
    • Mounting: Solder Lug
    • Approvals: Consult Factory for Details of Approved Models
    • LED Color : Green
  8. image placeholder
    IP - momentary
    IPR1SAD3L0G
    • Mounting: Solder Lug
    • LED Color : Green
    • Actuator Colors: Green
  9. image placeholder
    IP - momentary
    IPR1SAD3
    • Mounting: Solder Lug
    • Actuator Colors: Green
    • Contact Materials: Silver (Gold-Plated)
  10. image placeholder
    IP - momentary
    IPR1SAD2UL
    • Mounting: Solder Lug
    • Approvals: Consult Factory for Details of Approved Models
    • Actuator Colors: Black
  11. image placeholder
    IP - momentary
    IPR1SAD2
    • Mounting: Solder Lug
    • Actuator Colors: Black
    • Contact Materials: Silver (Gold-Plated)
  12. image placeholder
    IP - momentary
    IPR1SAD1UL
    • Mounting: Solder Lug
    • Approvals: Consult Factory for Details of Approved Models
    • Actuator Colors: Blue

Showing 1~ 12 of 314 Products

...
