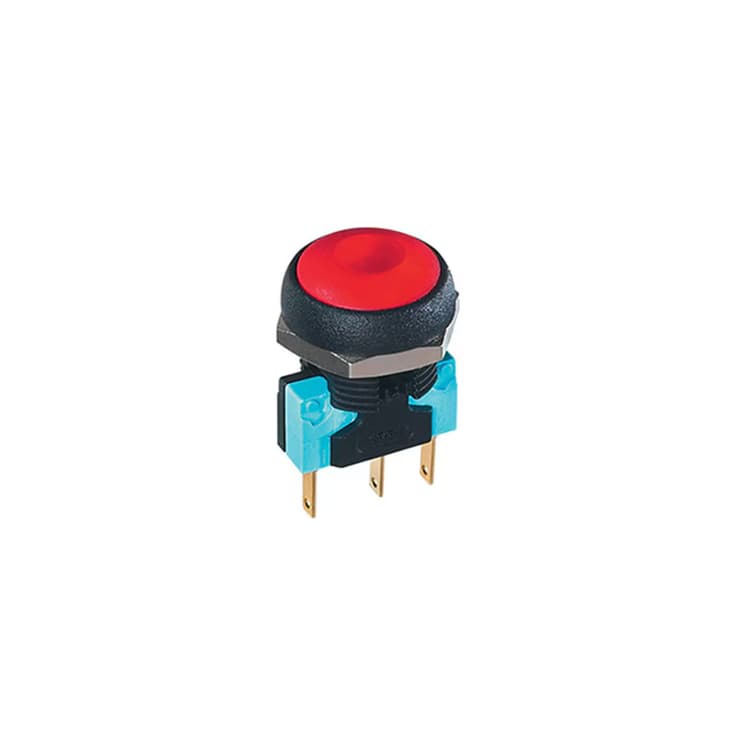

IR - microswitch

The IR series of sealed pushbutton switches is divided into 2 families : standard models and microswitch technology models.

Main features

  • Sealed to IP67
  • Tactile feedback
  • Square or round actuator
  • Wide choice of actuator colors
  • Easily customized
  • Optional marking (actuator marking is available on request for models with flat round actuator)
Product detail
Product detail

Key Features

• Panel thickness: 3 mm (.118) max. • Total travel: 1.6 mm (.062) +/- 0.3 mm • Typical operating force: 4 N +/- 2 N • Mechanical life: 1,000,000 cycles • Torque: 0.8 Nm max. applied to nut • Soldering: 320 °C max. for 3 sec.
185 Products
Filters
  1. image placeholder
    IR - microswitch
    IRR8Z2B7
    • Terminals: Solder Lug Quick Connect
    • Bushing Bezel: White
    • Actuator Colors: Dark Blue
  2. image placeholder
    IR - microswitch
    IRR8Z2B0
    • Terminals: Solder Lug Quick Connect
    • Bushing Bezel: Transparent Round Bezel Only
    • Actuator Colors: Dark Blue
  3. image placeholder
    IR - microswitch
    IRR8Z2A7
    • Terminals: Solder Lug Quick Connect
    • Bushing Bezel: White
    • Actuator Colors: Satin Chrome
  4. image placeholder
    IR - microswitch
    IRR8Z2A2
    • Terminals: Solder Lug Quick Connect
    • Bushing Bezel: Black Standard
    • Actuator Colors: Satin Chrome
  5. image placeholder
    IR - microswitch
    IRR8Z292
    • Terminals: Solder Lug Quick Connect
    • Bushing Bezel: Black Standard
    • Actuator Colors: Orange
  6. image placeholder
    IR - microswitch
    IRR8Z290
    • Terminals: Solder Lug Quick Connect
    • Bushing Bezel: Transparent Round Bezel Only
    • Actuator Colors: Orange
  7. image placeholder
    IR - microswitch
    IRR8Z287
    • Terminals: Solder Lug Quick Connect
    • Bushing Bezel: White
    • Actuator Colors: Bright Chrome
  8. image placeholder
    IR - microswitch
    IRR8Z272
    • Terminals: Solder Lug Quick Connect
    • Bushing Bezel: Black Standard
    • Actuator Colors: White
  9. image placeholder
    IR - microswitch
    IRR8Z270
    • Terminals: Solder Lug Quick Connect
    • Bushing Bezel: Transparent Round Bezel Only
    • Actuator Colors: White
  10. image placeholder
    IR - microswitch
    IRR8Z260
    • Terminals: Solder Lug Quick Connect
    • Bushing Bezel: Transparent Round Bezel Only
    • Actuator Colors: Red
  11. image placeholder
    IR - microswitch
    IRR8Z252
    • Terminals: Solder Lug Quick Connect
    • Bushing Bezel: Black Standard
    • Actuator Colors: Yellow
  12. image placeholder
    IR - microswitch
    IRR8Z242
    • Terminals: Solder Lug Quick Connect
    • Bushing Bezel: Black Standard
    • Actuator Colors: Gray

Showing 1~ 12 of 185 Products

...
