IS

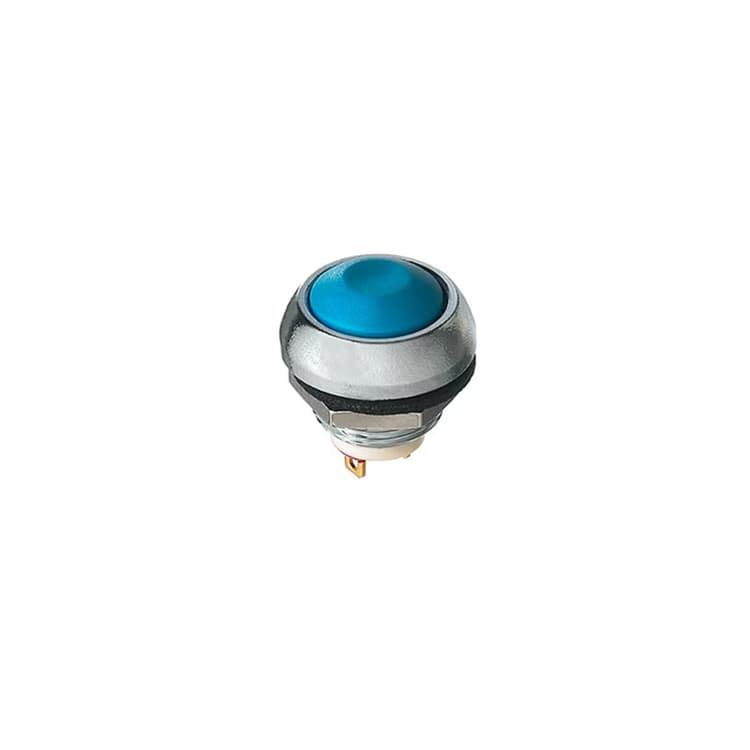

Sealed pushbutton switches with threaded bushing. Compact and light in weight with50% reduction in weight compare to metallic models.

Main features

  • Behind panel depth of 13mm (.512)
  • Tactile feedback
  • Sealed to IP67
Additional sealing by silicone boot for protection against frost and abrasion by sand.


Product detail
Product detail

Key Features

• Panel thickness: 1,5 mm (.059) min. - 4 mm (.157) max. • Total travel: 1.7 mm (.066) +/- 0.3 mm • Typical operating force: 4 N +/- 3 N • Low level or mechanical life: 1,000,000 cycles • Torque (applied to nut): 1 Nm max. with metal nut U166 1.5 Nm max. with plastic nut U4248 • Soldering: 300 °C max. for 3 seconds
110 Products
Filters
  1. image placeholder
    IS
    ISR3SAD600UL
    • Mounting: Solder Lug
    • Approvals: Consult Factory for Details of Approved Models
    • Bushing Bezel: Black Standard
  2. image placeholder
    IS
    ISR3SAD600
    • Mounting: Solder Lug
    • Bushing Bezel: Black Standard
    • Actuator Colors: Red
  3. image placeholder
    IS
    ISR3SAD500UL
    • Mounting: Solder Lug
    • Approvals: Consult Factory for Details of Approved Models
    • Bushing Bezel: Black Standard
  4. image placeholder
    IS
    ISR3SAD500
    • Mounting: Solder Lug
    • Bushing Bezel: Black Standard
    • Actuator Colors: Yellow
  5. image placeholder
    IS
    ISR3SAD400UL
    • Mounting: Solder Lug
    • Approvals: Consult Factory for Details of Approved Models
    • Bushing Bezel: Black Standard
  6. image placeholder
    IS
    ISR3SAD400
    • Mounting: Solder Lug
    • Bushing Bezel: Black Standard
    • Actuator Colors: Gray
  7. image placeholder
    IS
    ISR3SAD300UL
    • Mounting: Solder Lug
    • Approvals: Consult Factory for Details of Approved Models
    • Bushing Bezel: Black Standard
  8. image placeholder
    IS
    ISR3SAD300
    • Mounting: Solder Lug
    • Bushing Bezel: Black Standard
    • Actuator Colors: Green
  9. image placeholder
    IS
    ISR3SAD200UL
    • Mounting: Solder Lug
    • Approvals: Consult Factory for Details of Approved Models
    • Bushing Bezel: Black Standard
  10. image placeholder
    IS
    ISR3SAD200
    • Mounting: Solder Lug
    • Bushing Bezel: Black Standard
    • Actuator Colors: Black
  11. image placeholder
    IS
    ISR3SAD100UL
    • Mounting: Solder Lug
    • Approvals: Consult Factory for Details of Approved Models
    • Bushing Bezel: Black Standard
  12. image placeholder
    IS
    ISR3SAD100
    • Mounting: Solder Lug
    • Bushing Bezel: Black Standard
    • Actuator Colors: Blue

Showing 1~ 12 of 110 Products

...
