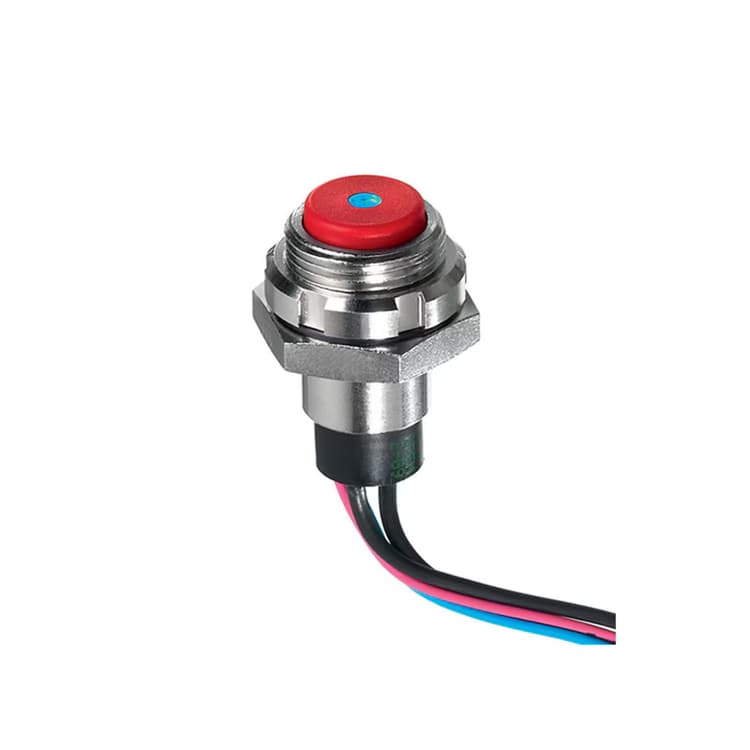

IZ - metal - latching

The IZ series is a rear mounted pushbutton, available with a polyamide or a metal case. This product has been designed to reduce the assembly cost in 2 application types: wave soldering and when using a connector. The IZ series allows flush panel mounting and makes dismounting easier.

Main features

  • Rear mounting for easier installation
  • Latching action metal models
  • Fixed or variable panel thickness
  • Sealed to IP67
  • Illuminated or non-illuminated
  • Flat actuator for optional marking
Product detail
Product detail

Key Features

• Panel thickness: - IZM: 3 mm (.118) max. - IZN: 4 mm (.157) max. • Total travel: 1.8 mm (.070) +/- 0.3 mm • Typical operating force: 6 N +/- 2 N • Low level or mechanical life: 1,000,000 cycles • Torque: IZN: 1 Nm max. IZM : 0,7 Nm max. applied to nut • Soldering : 320 °C max. for 3 sec.
100 Products
Filters
  1. image placeholder
    IZ - metal - latching
    IZNR3S42NL0Y
    • Model: Metal Fixed Panel Thickness
    • Mounting: Solder Lug
    • LED Color : Yellow
  2. image placeholder
    IZ - metal - latching
    IZNR3S42NL0S
    • Model: Metal Fixed Panel Thickness
    • Mounting: Solder Lug
    • Actuator Colors: Black
  3. image placeholder
    IZ - metal - latching
    IZNR3S42N
    • Model: Metal Fixed Panel Thickness
    • Mounting: Solder Lug
    • Actuator Colors: Black
  4. image placeholder
    IZ - metal - latching
    IZMR3S46N
    • Model: Metal Variable Panel Thickness
    • Mounting: Solder Lug
    • Actuator Colors: Red
  5. image placeholder
    IZ - metal - latching
    IZMR3S43N
    • Model: Metal Variable Panel Thickness
    • Mounting: Solder Lug
    • Actuator Colors: Green
  6. image placeholder
    IZ - metal - latching
    IZMR3S42N
    • Model: Metal Variable Panel Thickness
    • Mounting: Solder Lug
    • Actuator Colors: Black
  7. image placeholder
    IZ - metal - latching
    IZMR3S41N
    • Model: Metal Variable Panel Thickness
    • Mounting: Solder Lug
    • Actuator Colors: Blue
  8. image placeholder
    IZ - metal - latching
    IZMR3F47NL0B
    • Model: Metal Variable Panel Thickness
    • Mounting: Flying Leads
    • LED Color : Blue
  9. image placeholder
    IZ - metal - latching
    IZNR3Z4BN
    • Model: Metal Fixed Panel Thickness
    • Mounting: Quick Connect Non-Illuminated
    • LED Color : Non-Illuminated
  10. image placeholder
    IZ - metal - latching
    IZNR3Z42N
    • Model: Metal Fixed Panel Thickness
    • Mounting: Quick Connect Non-Illuminated
    • LED Color : Non-Illuminated
  11. image placeholder
    IZ - metal - latching
    IZNR3V43NLSG
    • Model: Metal Fixed Panel Thickness
    • Mounting: Screw, Non-Illuminated, N Model Only
    • LED Color : Red/Green
  12. image placeholder
    IZ - metal - latching
    IZNR3V2BNLSG
    • Model: Metal Fixed Panel Thickness
    • Mounting: Screw, Non-Illuminated, N Model Only
    • LED Color : Red/Green

Showing 1~ 12 of 100 Products

...
