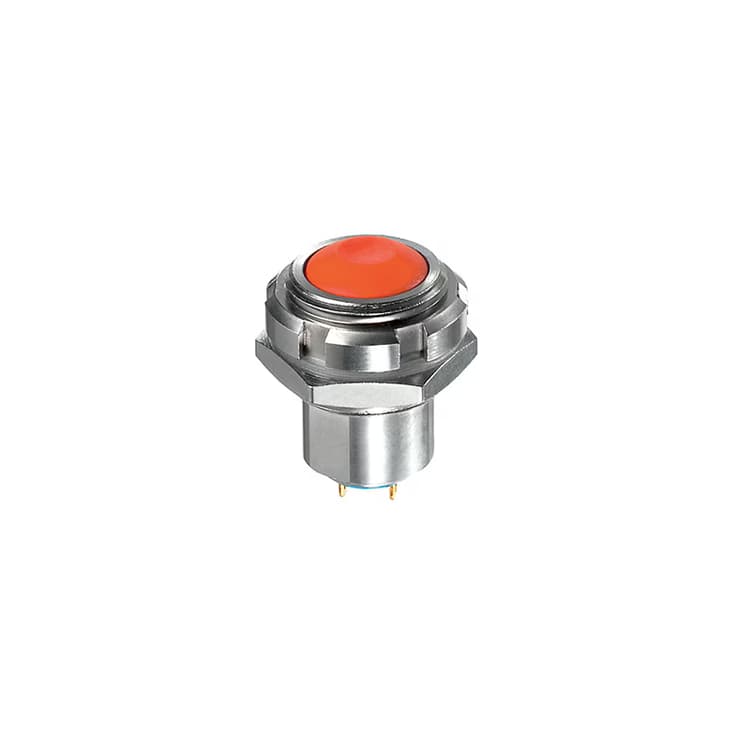

IZ - metal - momentary

The IZ series is a rear mounted pushbutton, available with a polyamide or a metal case. This product has been designed to reduce the assembly cost in 2 application types: wave soldering and when using a connector. The IZ series allows flush panel mounting and makes dismounting easier.

Main features

  • Rear mounting for easier installation
  • Momentary metal models
  • Fixed or variable panel thickness
  • Screw version available up to 4A
  • Sealed to IP67
  • Illuminated or non-illuminated
  • Flat actuator for optional marking
Product detail
Product detail

Key Features

• Panel thickness: - IZM: 3 mm (.118) max. - IZN: 4 mm (.157) max. • Total travel: 1.8 mm (.070) +/- 0.3 mm • Typical operating force: 6 N +/- 2 N • Low level or mechanical life: 1,000,000 cycles • Torque: IZN: 1 Nm max. IZM: 0.7 Nm max. applied to nut • Soldering : 320 °C max. for 3 sec.
108 Products
Filters
  1. image placeholder
    IZ - metal - momentary
    IZNR1S42N
    • Model: Metal Fixed Panel Thickness
    • Mounting: Solder Lug
    • Bushing Bezel: Nickel-Plated
  2. image placeholder
    IZ - metal - momentary
    IZNR1P4BNL0S
    • Model: Metal Fixed Panel Thickness
    • Mounting: Straight PC
    • Bushing Bezel: Nickel-Plated
  3. image placeholder
    IZ - metal - momentary
    IZNR1P46N
    • Model: Metal Fixed Panel Thickness
    • Mounting: Straight PC
    • Bushing Bezel: Nickel-Plated
  4. image placeholder
    IZ - metal - momentary
    IZNR1P42NL0G
    • Model: Metal Fixed Panel Thickness
    • Mounting: Straight PC
    • LED Color : Green
  5. image placeholder
    IZ - metal - momentary
    IZNR1F4AN
    • Model: Metal Fixed Panel Thickness
    • Mounting: Flying Leads
    • Bushing Bezel: Nickel-Plated
  6. image placeholder
    IZ - metal - momentary
    IZNR1F44NL0S
    • Model: Metal Fixed Panel Thickness
    • Mounting: Flying Leads
    • Bushing Bezel: Nickel-Plated
  7. image placeholder
    IZ - metal - momentary
    IZNP1P42NL0G
    • Model: Metal Fixed Panel Thickness
    • Mounting: Straight PC
    • LED Color : Green
  8. image placeholder
    IZ - metal - momentary
    IZNP1F4AN
    • Model: Metal Fixed Panel Thickness
    • Mounting: Flying Leads
    • Bushing Bezel: Nickel-Plated
  9. image placeholder
    IZ - metal - momentary
    IZNP1F46NL0G
    • Model: Metal Fixed Panel Thickness
    • Mounting: Flying Leads
    • LED Color : Green
  10. image placeholder
    IZ - metal - momentary
    IZMR1S46N
    • Model: Metal Variable Panel Thickness
    • Mounting: Solder Lug
    • Bushing Bezel: Nickel-Plated
  11. image placeholder
    IZ - metal - momentary
    IZMR1S42NL0G
    • Model: Metal Variable Panel Thickness
    • Mounting: Solder Lug
    • LED Color : Green
  12. image placeholder
    IZ - metal - momentary
    IZMR1S42N
    • Model: Metal Variable Panel Thickness
    • Mounting: Solder Lug
    • Bushing Bezel: Nickel-Plated

Showing 1~ 12 of 108 Products

...
