12000

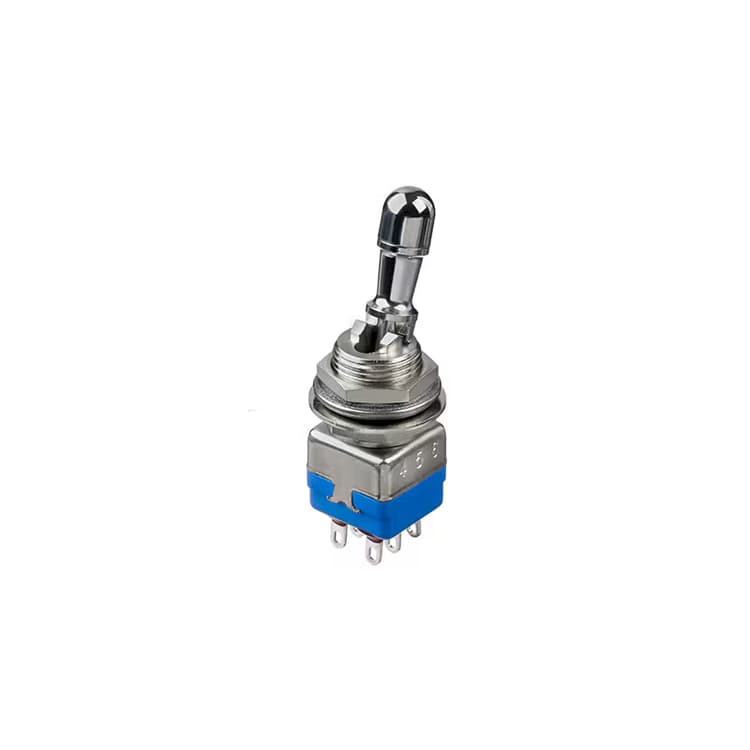

Toggle switches specially manufactured for defense, telecommunications and other industrial applications. 1, 2, 3 and 4 pole configurations, silver, gold-plated silver or solid gold rivet contacts. Several front panel sealing options. Bright chrome, satin chrome or matt black finish. CECC approved. Several locking lever options.


Main features

  • Approvals: CECC 96201-005, CECC 96201-008, meeting the requirements of MIL standard (MIL 3950)
  • Robust switches for high specification environments
  • Toggle action on 2-position models giving smooth mechanical operation
  • Plastic material with high insulation resistance
  • Several front panel sealing options
  • Several locking lever options
  • Bright chrome, satin chrome or matt black finish
Upon request, each individual switch can be submitted to a low-level run-in test of 50 or 250 cycles to ensure suitability for special applications requiring a very high level of reliability (military, space, etc.).
Product detail
Product detail

Key Features

• Torque:1.50 Nm (1.10 Ft.lb) max. applied between the 2 nuts • Standard panel thickness: 4.5 mm (.177) max.
993 Products
Filters
  1. image placeholder
    12000
    12269AK-12VX780
    • Finish: Bright Chrome Finish On Actuator
    • Levers: Functions 7 & 8
    • Sealing: Front Panel Sealing with One O-Ring and Sealing Washer
  2. image placeholder
    12000
    12269AGK-038-5VX545
    • Finish: Black Finish On Bushing Actuator and Hardware
    • Levers: Functions 7, 442R
    • Sealing: Front Panel Sealing with One O-Ring and Sealing Washer
  3. image placeholder
    12000
    12269AD2K-15VX910
    • Finish: Bright Chrome Finish On Actuator
    • Levers: Functions 8-441R
    • Sealing: Front Panel Sealing with One O-Ring and Sealing Washer
  4. image placeholder
    12000
    12269AD2K-15VX545
    • Finish: Bright Chrome Finish On Actuator
    • Levers: Functions 8-441R
    • Sealing: Front Panel Sealing with One O-Ring and Sealing Washer
  5. image placeholder
    12000
    12269AD2K-12VCECC
    • Finish: Bright Chrome Finish On Actuator
    • Levers: Functions 7 & 8
    • Sealing: Front Panel Sealing with One O-Ring and Sealing Washer
  6. image placeholder
    12000
    12269AD2-4VX545
    • Finish: Bright Chrome Finish On Actuator
    • Levers: Functions 9-4
    • Sealing: Epoxy Sealed Terminals
  7. image placeholder
    12000
    12269A-9VX822CECC
    • Finish: Bright Chrome Finish On Actuator
    • Levers: Functions 8-441R
    • Sealing: Epoxy Sealed Terminals
  8. image placeholder
    12000
    12268DK-20VX822
    • Finish: Bright Chrome Finish On Actuator
    • Levers: Functions 9-44
    • Sealing: Front Panel Sealing with One O-Ring and Sealing Washer
  9. image placeholder
    12000
    12268DK-15VX822
    • Finish: Bright Chrome Finish On Actuator
    • Levers: Functions 8-441R
    • Sealing: Front Panel Sealing with One O-Ring and Sealing Washer
  10. image placeholder
    12000
    12268DK-15VX545CECC
    • Finish: Bright Chrome Finish On Actuator
    • Levers: Functions 8-441R
    • Sealing: Front Panel Sealing with One O-Ring and Sealing Washer
  11. image placeholder
    12000
    12268DK-12CECC
    • Finish: Bright Chrome Finish On Actuator
    • Levers: Short
    • Sealing: Front Panel Sealing with One O-Ring and Sealing Washer
  12. image placeholder
    12000
    12268DGK-038-8VX822
    • Finish: Black Finish On Bushing Actuator and Hardware
    • Levers: Functions 9-44
    • Sealing: Front Panel Sealing with One O-Ring and Sealing Washer

Showing 1~ 12 of 993 Products

...
