3500

1 and 2 pole configurations available with solder lug, screw or quick connect terminals. Toggle switches designed for outdoor applications. Frontal sealing to IP67 and IP69K by a silicone membrane. Rear sealing to IP64 provided by moulded-in terminals.


Main features


  • Completely sealed switches withstanding 0.1 bar pressure
  • Frontal sealing to IP67 and IP69K by a silicone membrane (for sealed panel mounting, add washer U60)
  • Rear sealing to IP64 provided by moulded-in terminal inserts
  • Approved to European standards CECC 96000
  • 3 types of terminals
  • Many lever styles available
Product detail
Product detail

Key Features

• Mechanical life: 40,000 cycles • Torque: 2 Nm (1.47 Ft.lb) max. applied to nut
309 Products
Filters

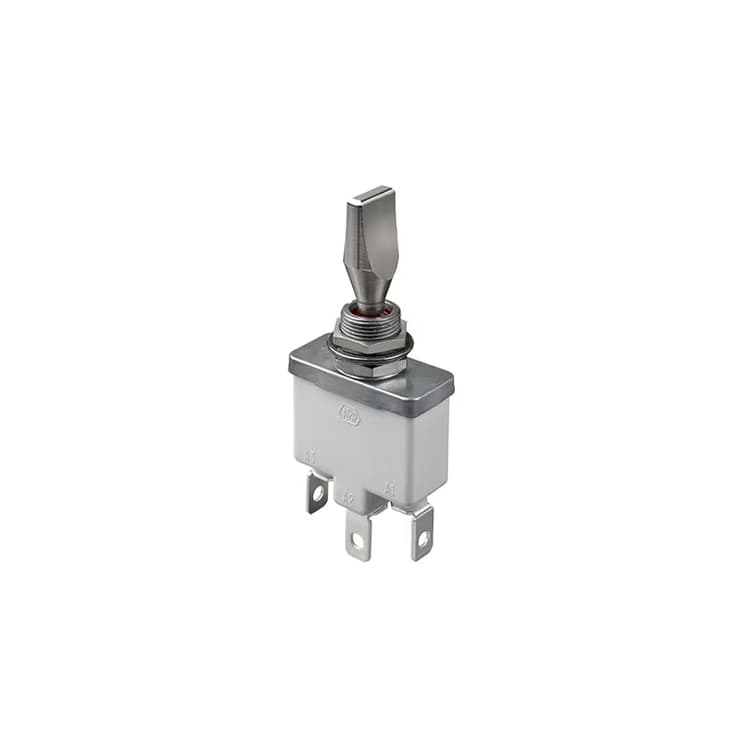

  1. image placeholder
    3500
    3549-033N002
    • Levers: Flattened Length: 24 mm(0.944in)
    • Mounting: Normalized Quick Connect
  2. image placeholder
    3500
    3549-031N000
    • Levers: Standard Length 175 mm (688) or Locking Length 20 mm (787)
    • Mounting: Normalized Quick Connect
  3. image placeholder
    3500
    3549-024N002
    • Levers: 40 mm (1.574in)
    • Mounting: Solder Lug Quick Connect
  4. image placeholder
    3500
    3549-023N000
    • Levers: Flattened Length: 24 mm(0.944in)
    • Mounting: Solder Lug Quick Connect
  5. image placeholder
    3500
    3549-021N002
    • Levers: Standard Length 175 mm (688) or Locking Length 20 mm (787)
    • Mounting: Solder Lug Quick Connect
  6. image placeholder
    3500
    3549-021N000
    • Levers: Standard Length 175 mm (688) or Locking Length 20 mm (787)
    • Mounting: Solder Lug Quick Connect
  7. image placeholder
    3500
    3549-021BA02
    • Levers: Standard Length 175 mm (688) or Locking Length 20 mm (787)
    • Mounting: Solder Lug Quick Connect
  8. image placeholder
    3500
    3549-006NA00
    • Levers: Locking Length: 254 mm(1in)
    • Mounting: Screw
  9. image placeholder
    3500
    3549-004N002
    • Levers: 40 mm (1.574in)
    • Mounting: Screw
  10. image placeholder
    3500
    3549-003N012
    • Levers: Flattened Length: 24 mm(0.944in)
    • Mounting: Screw
    • Approvals: CECC
  11. image placeholder
    3500
    3549-003N000
    • Levers: Flattened Length: 24 mm(0.944in)
    • Mounting: Screw
  12. image placeholder
    3500
    3549-003B002
    • Levers: Flattened Length: 24 mm(0.944in)
    • Mounting: Screw

Showing 1~ 12 of 309 Products

...
