5000

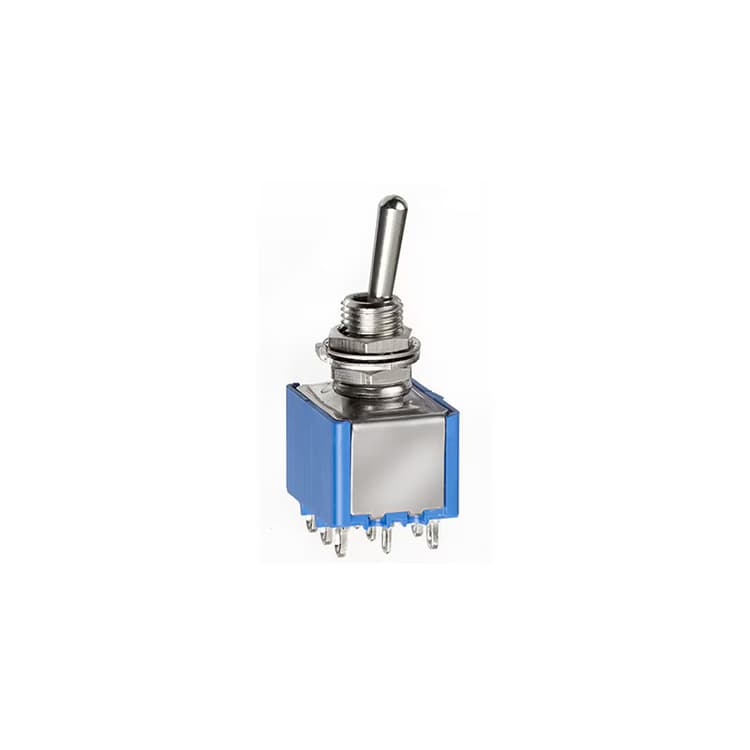

Mini toggles from APEM's 5000 series are known for their robustness and compact design. These mini toggle switches are 6.35 mm wide. They can handle high inrush currents up to 120A for 2 ms. This very versatile series offers a large range of customization possibilities, including various actuators and accessories, catering to diverse application needs.


Whether you need standard or custom miniature toggle switches, this series has options for you. It includes both momentary and maintained toggle switches.

You can choose from up to four pole configurations and many terminal types, including PCB mounting. Designed for performance and reliability, these tiny switches meet strict industry standards like UL, CSA, VDE, and CECC. This makes them perfect for many applications in different industries.

Key Features:
  • Torque: up to 1.25 Nm (0.922 ft-lb) suitable for mini toggle and momentary toggle switches.
  • Panel thickness: accommodates from 2.5 mm with two nuts to 4 mm with one nut, ideal for tiny switch installations.
  • Mechanical life: engineered for 100,000 cycles, ensuring reliability for custom miniature toggle switches.
Product detail
Product detail

Key Features

• Torque: 1,25 Nm (.922 Ft.lb) max. applied to nut • Panel thickness: 2.5 mm (.098) with 2 nuts - 4 mm (.157) with 1 nut • Low level or mechanical life: 100,000 cycles
1449 Products
Filters
  1. image placeholder
    5000
    5969ZAGK-038-3VX408UL
    • Finish: Black
    • Levers: 3 Locked Positions
    • Sealing: Front Panel Sealing
  2. image placeholder
    5000
    5969YCDGK-1VX408CSA
    • Finish: Black
    • Levers: 1 Locked Position
    • Sealing: Front Panel Sealing
  3. image placeholder
    5000
    5969ADG-038-3VX681CECC
    • Finish: Black
    • Levers: 3 Locked Positions
    • Sealing: Unsealed
  4. image placeholder
    5000
    5968ZAGB-038-3VX601UL
    • Finish: Black
    • Levers: 3 Locked Positions
    • Sealing: Epoxy Sealed
  5. image placeholder
    5000
    5968WWADB-038X681CECC
    • Finish: Nickel-Plated
    • Levers: 10.5mm/13.5mm
    • Sealing: Epoxy Sealed
  6. image placeholder
    5000
    5968WAGK-038X408CSA
    • Finish: Black
    • Levers: 10.5mm/13.5mm
    • Sealing: Front Panel Sealing
  7. image placeholder
    5000
    5968AK-16X408CSA
    • Finish: Nickel-Plated
    • Levers: 5.5mm/8.5mm
    • Sealing: Front Panel Sealing
  8. image placeholder
    5000
    5967ZADK-3VUL
    • Finish: Nickel-Plated
    • Levers: 3 Locked Positions
    • Sealing: Front Panel Sealing
  9. image placeholder
    5000
    5967YADG-16CSA
    • Finish: Black
    • Levers: 5.5mm/8.5mm
    • Sealing: Unsealed
  10. image placeholder
    5000
    5967WWAGK-038-3VX442CECC
    • Finish: Black
    • Levers: 3 Locked Positions
    • Sealing: Front Panel Sealing
  11. image placeholder
    5000
    5967WWA-9X601
    • Finish: Nickel-Plated
    • Levers: 11.4 mm(0.448in)
    • Sealing: Unsealed
  12. image placeholder
    5000
    5967WTH2RCDB-1VX408CECCU390N
    • Finish: Nickel-Plated
    • Levers: 1 Locked Position
    • Sealing: Epoxy Sealed Terminals

Showing 1~ 12 of 1449 Products

...
