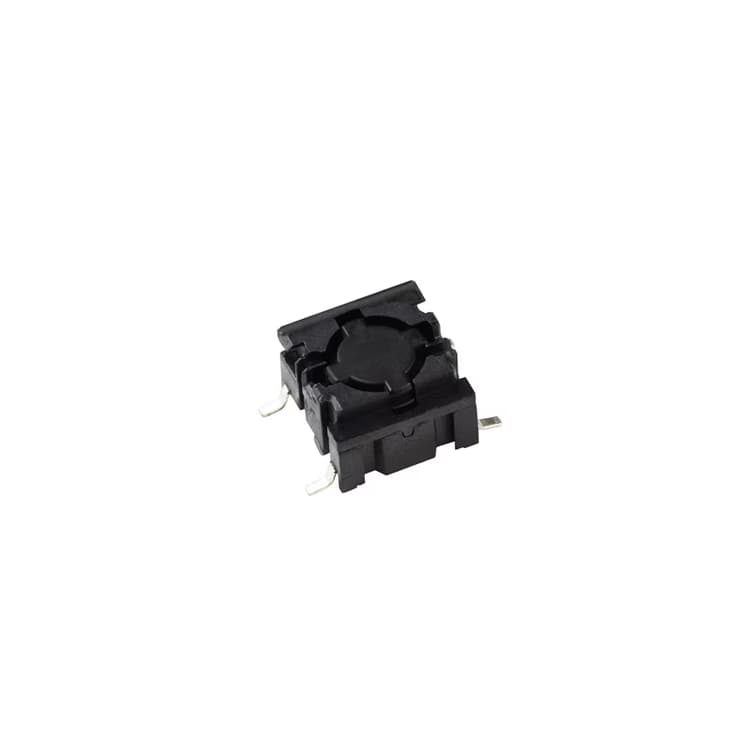

Multimec™ 5G

Multimec™ 5G switch has a large diameter snap-on cap retention system and an actuator levelled with the switch body. The switch series has 3 standard actuation forces and is only available in high temperature material in order to stand today´s advanced soldering processes. Furthermore, the switch can be supplied with one or two LEDs integrated on it in order to provide excellent illumination. Night vision (NVIS) LEDs are also available.

Caps that fit Multimec™ 5G switches: 10AQS+AQW, 1A, 1B+2C/2D, 1DS, 1ES, 1FS, 1GAS, 1GCS, 1H, 1IS, 1JS, 1KS, 1KBS, 1KCS, 1LS, 1M, 1NS, 1PS, 1QS, 1RS, 1SS, 1TS, 1US, 1VS, 1WAS, 1WDS, 1WPS, 1XS, 1ZA, 1ZB, 1ZCS, 1Z, 1ZW, 10D+10DWY, 10R, 10RF, 10RM, 10Q, 10QM, 10C, Aquamec™ and Designmec.


Main features

  • h=6.4 mm
  • 10 x 10 mm
  • Momentary
  • NO or NC/NO (NC/NO function is not sold in Japan)
  • IP67 sealing
  • 10,000,000 cycles
  • SMD, TH or through-hole RAS
  • illumination possibility
Product detail
Product detail

Key Features

• Through-hole (TH) or surface mount (SMD) or non-illuminated right angle though-hole • 50 mA / 24 VDC • Single pole/momentary • 10,000,000 operations lifetime (NO function) • Temperature range: Switch: -40/+160 °C LED: -40/+85°C • IP67 sealing • Actuation force: 2.0 N, 3.5 N, 6.5 N • NO or NC/NO (NC/NO function is not sold in Japan)
162 Products
Filters
  1. image placeholder
    Multimec™ 5G
    5GTH96582RAS
    • LED: Red
    • Options: Right Angle
    • Mounting: Through-hole
  2. image placeholder
    Multimec™ 5G
    5GTH96582Q
    • LED: Red
    • Options: Quiet Contacts
    • Mounting: Through-hole
  3. image placeholder
    Multimec™ 5G
    5GTH9658222Q
    • LED: Red/Green
    • Options: Quiet Contacts
    • Mounting: Through-hole
  4. image placeholder
    Multimec™ 5G
    5GTH9658222NCNO
    • LED: Red/Green
    • Options: Normally Closed / Normally Open Function
    • Mounting: Through-hole
  5. image placeholder
    Multimec™ 5G
    5GTH9658222G
    • LED: Red/Green
    • Options: Gold Contacts
    • Mounting: Through-hole
  6. image placeholder
    Multimec™ 5G
    5GTH9658222
    • LED: Red/Green
    • Mounting: Through-hole
    • Actuation Force: 65 N
  7. image placeholder
    Multimec™ 5G
    5GTH96582
    • LED: Red
    • Mounting: Through-hole
    • Actuation Force: 65 N
  8. image placeholder
    Multimec™ 5G
    5GTH96561R
    • LED: White
    • Options: Tape Reel
    • Mounting: Through-hole
  9. image placeholder
    Multimec™ 5G
    5GTH96561
    • LED: White
    • Mounting: Through-hole
    • Actuation Force: 65 N
  10. image placeholder
    Multimec™ 5G
    5GTH96542RAS
    • LED: Yellow
    • Options: Right Angle
    • Mounting: Through-hole
  11. image placeholder
    Multimec™ 5G
    5GTH96542
    • LED: Yellow
    • Mounting: Through-hole
    • Actuation Force: 65 N
  12. image placeholder
    Multimec™ 5G
    5GTH96529R
    • LED: High Intensity Green
    • Options: Tape Reel
    • Mounting: Through-hole

Showing 1~ 12 of 162 Products

...
