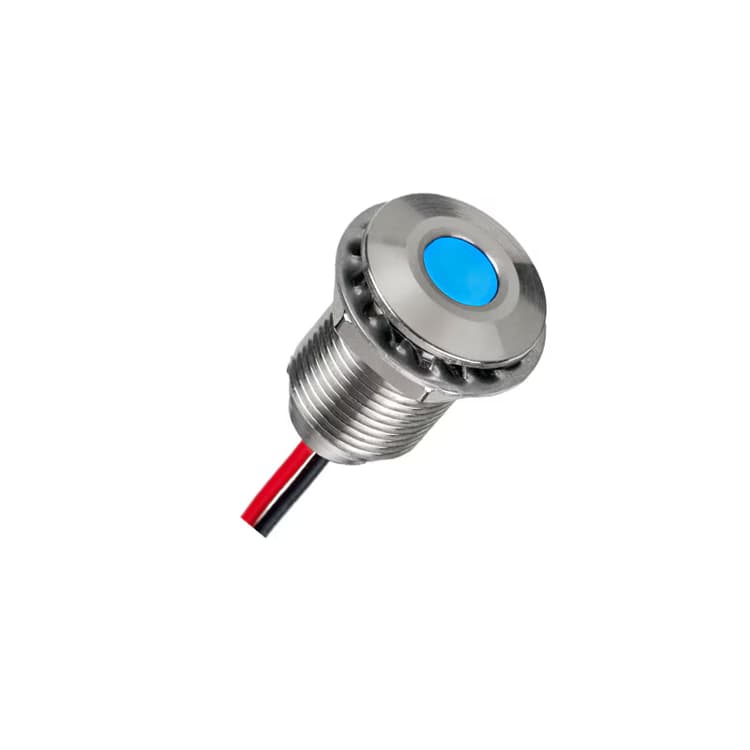

Q10

Panel mount LED indicators with 5 mm colored diffused epoxy lens or 5 mm water clear super bright LEDs with fixed light, flashing and RGB options.

Main features

  • Stainless Steel 316L or anodized bezel finish.
  • Shaped flush bezel style.
  • Voltage: 2 VDC - 28 VAC/DC.
  • 200 mm long wires.
  • IP67 sealing option (EN60529).
  • Supplied with fixing nut and spring washer.

Typical Applications

  • Medical
  • Telecommunications
  • Engineering
  • Transport Systems
  • Special Vehicles
  • Agricultural Vehicles
Product detail
Product detail

Key Features

• Max Reverse Voltage: 5 V • Viewing Angle: 60° * • Life Expectancy: 100,000 hours • Torque: 20 to 25 cNm * Dependant on Model
338 Products
Filters
  1. image placeholder
    Q10
    Q10F5SXXHY12E
    • Sealing: IP67
    • Voltage: 12V DC
    • Bezel Finish: Stainless Steel
  2. image placeholder
    Q10
    Q10F5SXXHY06E
    • Sealing: IP67
    • Bezel Finish: Stainless Steel
    • Mounting Hole: 10 mm
  3. image placeholder
    Q10
    Q10F5SXXHR24AE
    • Sealing: IP67
    • Voltage: 24V AC/DC
    • Bezel Finish: Stainless Steel
  4. image placeholder
    Q10
    Q10F5SXXHR12E
    • Sealing: IP67
    • Voltage: 12V DC
    • Bezel Finish: Stainless Steel
  5. image placeholder
    Q10
    Q10F5SXXHR06E
    • Sealing: IP67
    • Voltage: 6V DC
    • Bezel Finish: Stainless Steel
  6. image placeholder
    Q10
    Q10F5SXXHO24AE
    • Sealing: IP67
    • Voltage: 24V AC/DC
    • Bezel Finish: Stainless Steel
  7. image placeholder
    Q10
    Q10F5SXXHO12E
    • Sealing: IP67
    • Voltage: 12V DC
    • Bezel Finish: Stainless Steel
  8. image placeholder
    Q10
    Q10F5SXXHO06E
    • Sealing: IP67
    • Bezel Finish: Stainless Steel
    • Mounting Hole: 10 mm
  9. image placeholder
    Q10
    Q10F5SXXHG24AE
    • Sealing: IP67
    • Voltage: 24V AC/DC
    • Bezel Finish: Stainless Steel
  10. image placeholder
    Q10
    Q10F5SXXHG12E
    • Sealing: IP67
    • Voltage: 12V DC
    • Bezel Finish: Stainless Steel
  11. image placeholder
    Q10
    Q10F5SXXHG06E
    • Sealing: IP67
    • Bezel Finish: Stainless Steel
    • Mounting Hole: 10 mm
  12. image placeholder
    Q10
    Q10F5SZZRYG24E
    • Sealing: IP67
    • Voltage: 24VDC
    • Bezel Finish: Stainless Steel

Showing 1~ 12 of 338 Products

...
